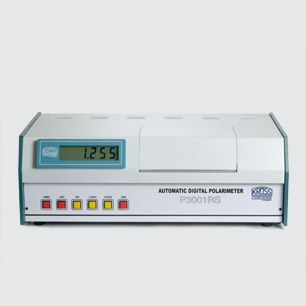

Automatische digitale polarimeter.Kruss P 3001/3002/RS

Automatic digital polarimeter, easy to operate, with automatic detection and digital angle conversion.


Measuring range: +/-45° Accuracy: 0.01° /0.004° .With polarimeter tubes 100 mm and 200 mm, sodium lamp and RS232 interface.



Applications:



Pharmaceutical Industry

Monitoring of chemical processes

Purity control and regulation of concentration



Chemical Industry

Purity control and regulation of concentrations

Analysis of optically active components (qualitative und quantitative)

Control of configuration changes

Monitoring of chemical processes



Sugar Industry

Quality control of intermediate and end products

Control of fructose and glucose



Food Industry

Control of concentration

Purity control

Quality control



Technical Data:



P3001/RS

P3002/RS

Articel-Number

P3001/RS

P3002/RS

Measuring range

+/- 45°

+/- 45°

Resolution

0.005

0.001

Accuracy

0.01°

0.004°

Balance Speed

1°/sec

1°/sec

Min. Sample Transmittance

10%

1%

Light Source

Sodium vapor lamp 589nm

Sodium vapor lamp 589nm

Power Supply

230V, AC, 50Hz, 100W

230V, AC, 50Hz, 100W







Scope of Supply

Scope of Supply

Polarimeter tubes 100 and 200 mm



Spare sodium vapor lamp 589 nm



Glass coverplates for polarimeter tube

Accessories

P1000-100

Sample cell 100mm

P1000-200

Sample cell 200mm

P1000-D100

Flow-thru cell with funnel and exit tubing, 100mm

P1000-D200

Flow-thru cell with funnel and exit tubing, 200mm

P1000-400

Quartz control plate for calibration



in °: -10°, +8°, +15°, +17°, +26°, 33°, 34° (+/-1°)



in °Z: -30°Z, +25°Z, +45°Z, +49°Z, +75°Z, +95°Z, +99°Z (+/-1°)

P1000-500

Quartz control plate for calibration



in °: -34°, -17°, +17°, +34° (+/-1°)



in °Z: -99°Z, -49°Z, +49°Z, +99°Z (+/-1°Z)

P1000-150

Glass-cover plate for sample cell, 2 pieces

P1000-300

Spare sodium lamp



Documentatie


4153_Labor-Polarimeter_engl.pdf 4153_Labor-Polarimeter_engl.pdf
